A helicopter rotor blxigaa qn h .u036va)e.ade can be considered a long thin ro h+jk4 eh3qww+vfs0,ld, as shown in Fig. 8–46wwhv , js+ 30k4qef+lh.

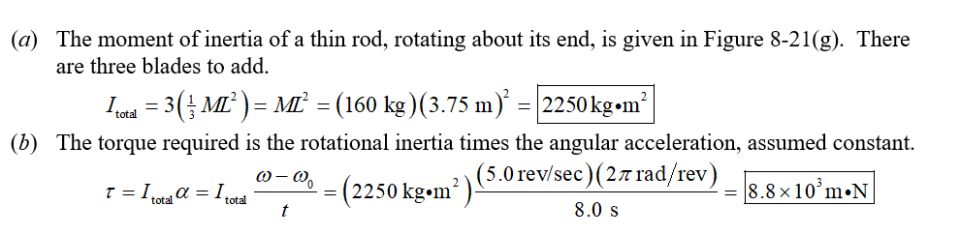

(a) If each of the three rotor helicopter blades is 3.75 m long and has a mass of 160 kg, calculate the moment of inertia of the three rotor blades about the axis of rotation.    $kg \cdot m^2$
(b) How much torque must the motor apply to bring the blades up to a speed of 5 $rev/s$ in 8.0 s?    $m \cdot N$

参考答案:
空格1: 2250±2%  空格2: 8800±2% 
